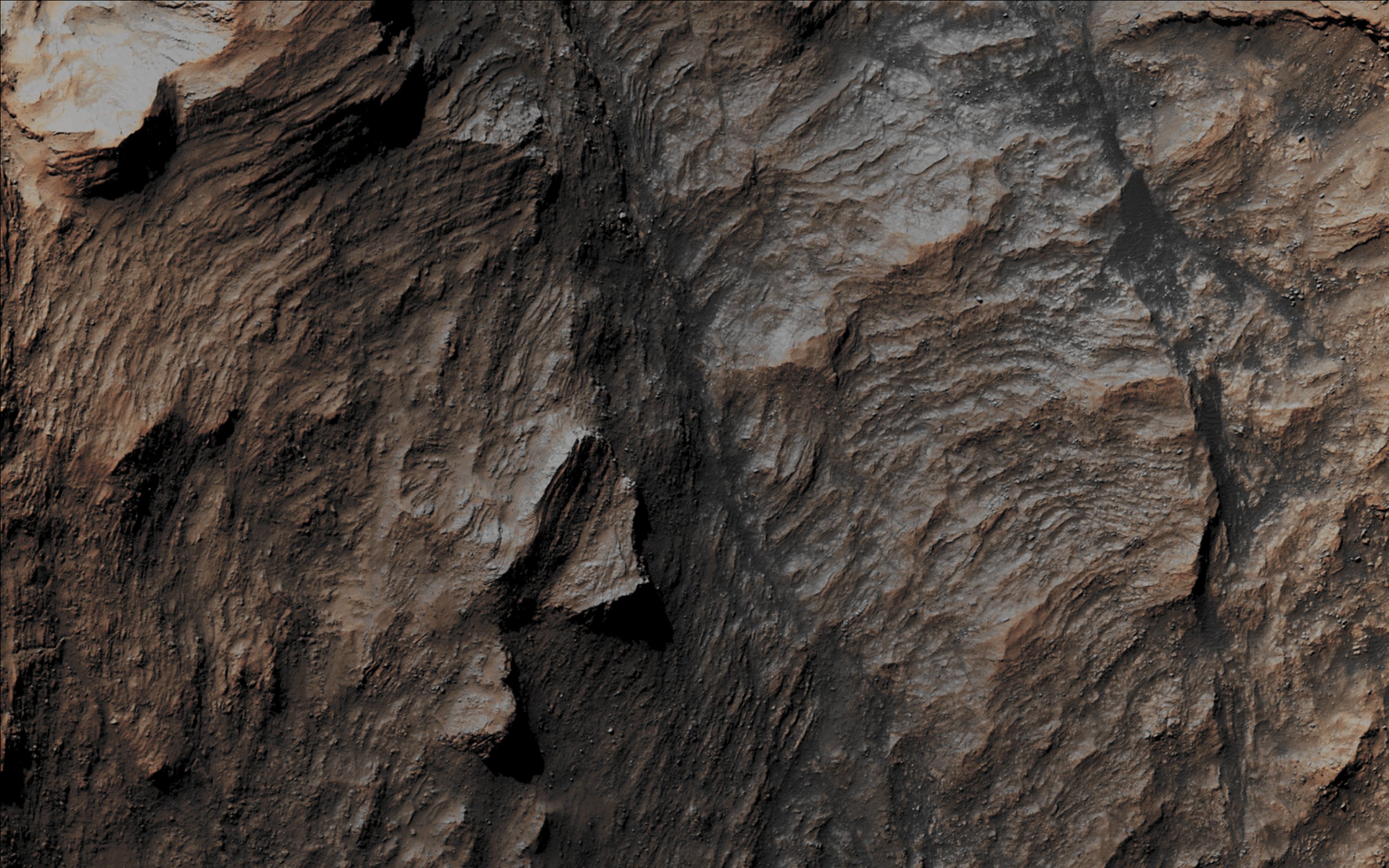

Layers in the Central Uplift of Mazamba Crater
Layers in the Central Uplift of Mazamba Crater

Credits: NASA/JPL/Univ. of Arizona - Galileo Project; Credits fo the additional process. and color.: Dr Paolo C. Fienga/LXTT/IPF

Mazamba Crater (a medium-sized Martian Impact Crater whose diameter is of approx. 52 Km - such as about 32,29 miles) is one of the 4 (four) Martian Impact Craters that are known (of course, at present time) to possess some (almost) intact Layers which are exposed in their Central Uplifts. Planetary Scientists believe that this Layered Material (very well visible here, in today's APOD) originates (---> comes) from a few kilometers beneath the present (---> as it is seen today) Martian Surface and that it was somehow raised-up during the formation of the Crater itself. These kind of Impact Craters, in fact, give us a window of visibility (and understanding) into these deep Layers, which would have otherwise remained hidden in the depths of the Red Planet.


Mars Local Time: 14:43 (Early Afternoon)
Coord. (centered): 27,532° South Lat. and 290,318° East Long.
Spacecraft altitude: 278,8 Km (such as about 173,134 miles)
Original image scale range: 27,9 cm/pixel (with 1 x 1 binningso objects ~ 84 cm across are resolved
Map projected scale: 25 cm/pixel
Map projection: EQUIRECTANGULAR
Emission Angle: 25,5°
Phase Angle: 36,2°
Solar Incidence Angle: 52° (meaning that the Sun was about 38° above the Local Horizon at the time the picture was taken)
Solar Longitude: 14,5° (Northern Spring - Southern Fall)
Credits: NASA/JPL/University of Arizona
Additional process. and coloring: Lunar Explorer Italia


This picture (which is a NASA - Original Mars Reconnaissance Orbiter False Colors and NON-Map Projected Sub-frame identified by the serial n. ESP_033248_1520) has been additionally processed, magnified, contrast enhanced, Gamma corrected, and then re-colorized in Absolute Natural Colors (such as the colors that a human eye would actually perceive if someone were onboard the NASA - Mars Reconnaissance Orbiter and then looked down, towards the Surface of Mars), by using an original technique created - and, in time, dramatically improved - by the Lunar Explorer Italia Team.
